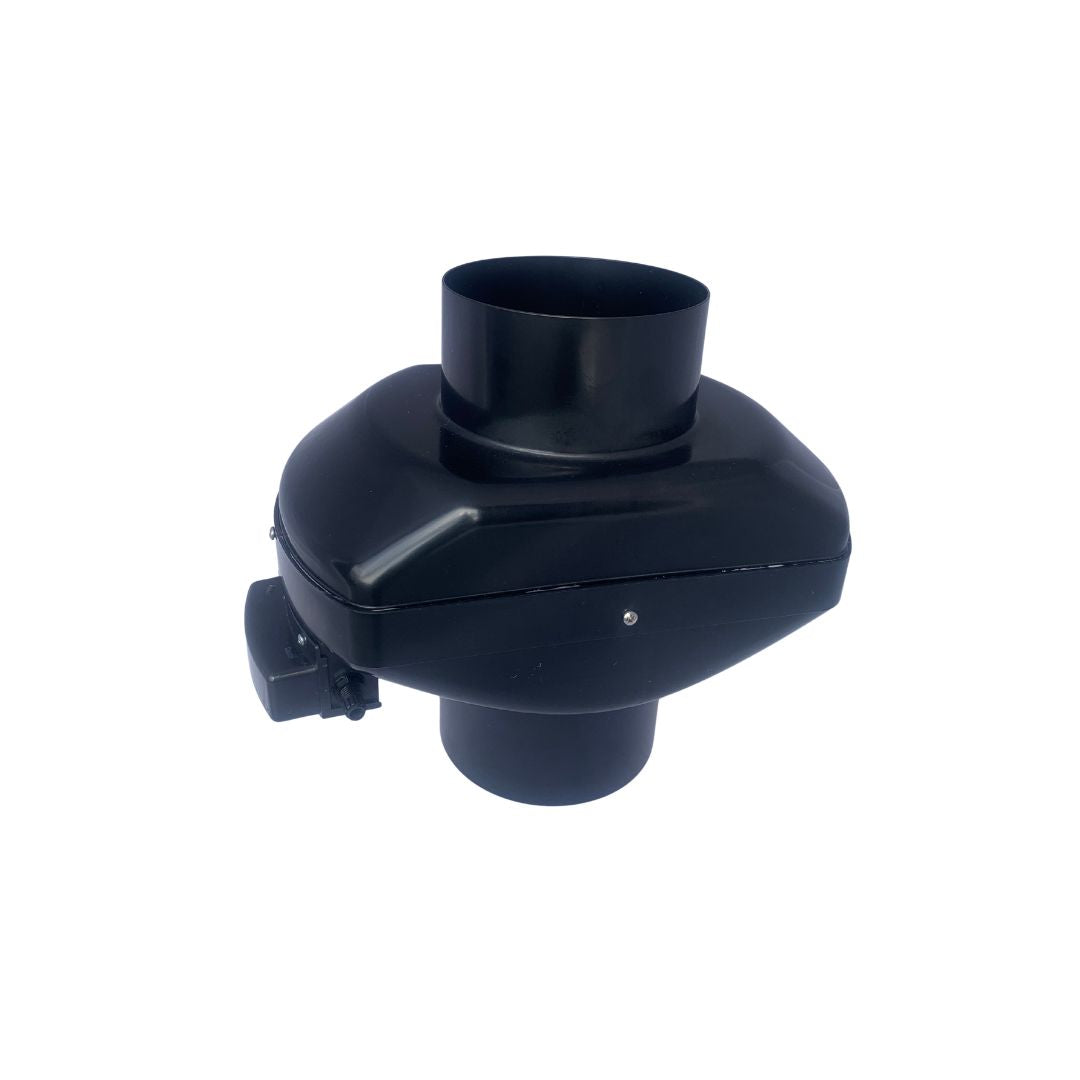

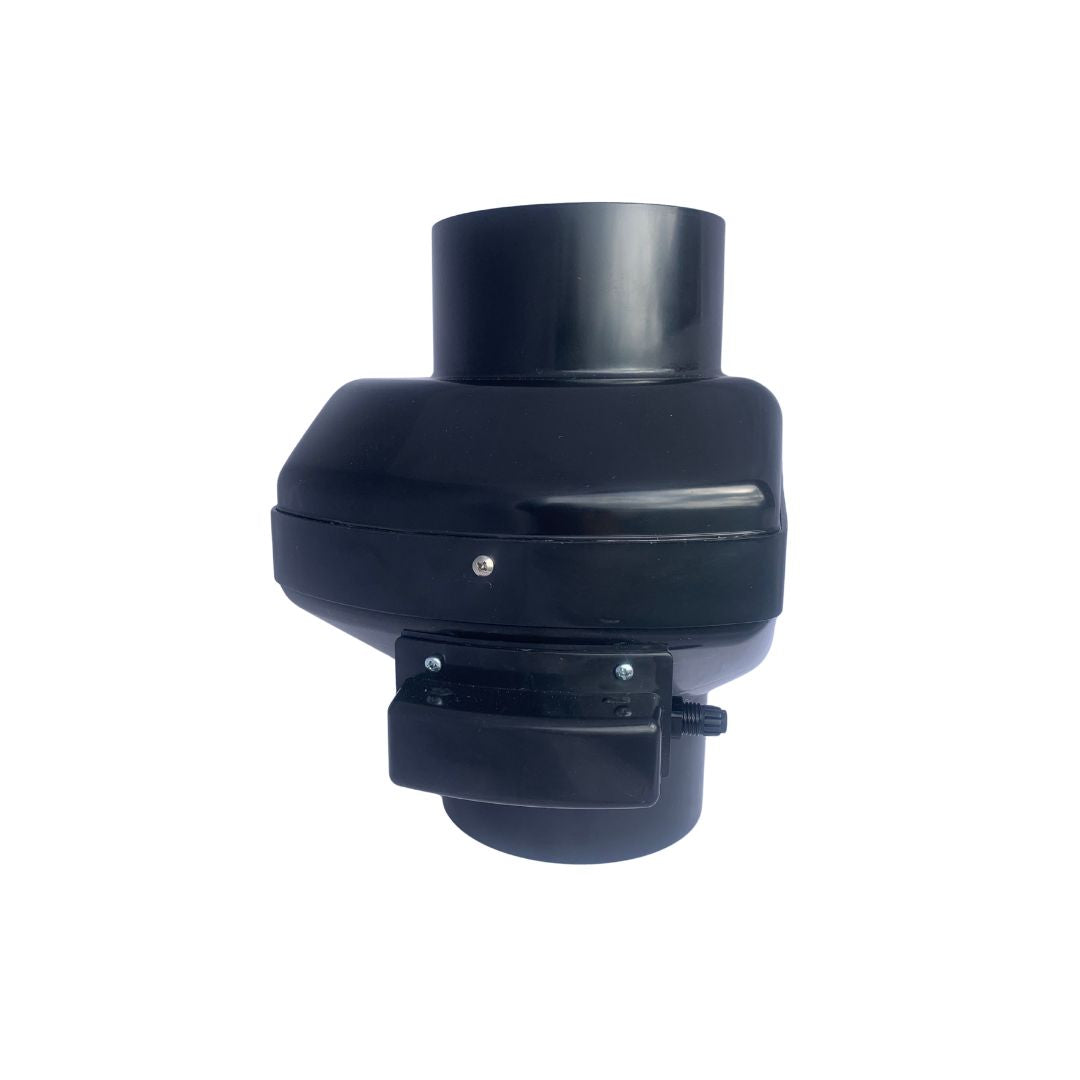

150mm Low Profile Fan System

The 150mm Low Profile Fan System is a compact, high-performance ventilation solution designed for residential HRV, DVS, and home ventilation systems. Its slim, low-profile design makes it ideal for installations where space is limited, while delivering reliable, quiet airflow.

• 150mm duct diameter — compatible with standard HRV/Smart vent/Super vent ducting
• Low-profile design for tight ceiling and wall cavities

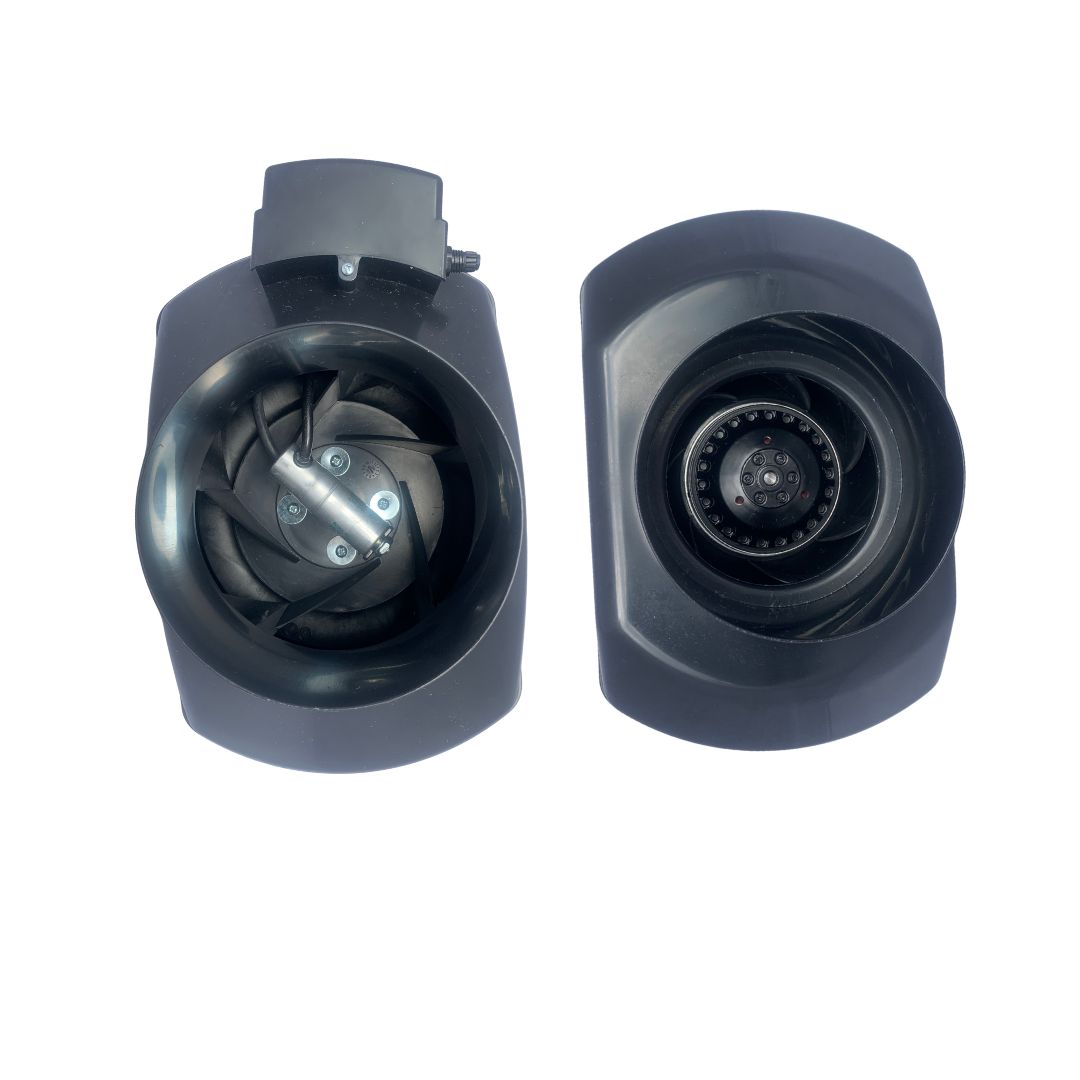

• Energy-efficient 190mm EBM PAPST motor for quiet, continuous operation
• Easy drop-in replacement for most major brands
• Suitable for bathroom, laundry, and whole-home ventilation

Motor & Technical FeaturesInlet duct size: 150mm

• Outlet duct size: 150mm
• Product protection rating: IPX2
• Motor impeller material: PA Plastic
• Device body material: ABS Plastic
• Max permissible transport & storage temp: +80
• Max permissible transport & storage temp: -40c
• Motor protection: Thermal cut out, Manual reset

Standards that device conforms to: AS / NZS 60335.1 - 60335.2.80

Electrical certification number: OZC-240302-EA

Max Airflow: 420 m3/hr (116 l/s)

Max radiated NR: 37 dB

Max discharge NR: 50 dB
